# Schemas
A schema is the collection which contains everything about your use-case. The schema will contain information about the selected database, module, user groups and the configuration of the structure of the write-back table. Whenever you create a new schema you have to choose one of our modules first. Depending on the selected module the setup of your schema will be different.
### Create a new schema
#### Step 1: Type & Connection
To create a schema:
1. Go to the **Schemas** section in Trulyp, under WriteBackExtreme.
2. Choose your schema type. If you don't know what type of schema best fits your needs, you can find out under [#what-kind-of-schema-should-you-use](#what-kind-of-schema-should-you-use "mention"). For this example, we will make an "Add Data" schema.
3. Afterwards, choose what your connection, or add a new one if you have the right permissions. If you don't see any connections, none of your groups have any connections assigned to them. Ask a **connections manager** or **admin** to assign one for you. Afterwards, press **continue**.
#### Step 2: Schema & Fields
In this step, we will add the label and table name, along with the **Fields** that we want to use for the Schema. In this example, I want an **id,** **name** and **age** column. The id is the primary key, name is a single line text, and age is a number.
#### 🧩 Supported field types
When adding fields to your schema form, you can choose from the following input types:
* **Single Line Text** – For short entries like names or codes
* **Paragraph Text** – For longer free-text comments
* **Number** – For numerical values
* **Boolean (Yes/No)** – For binary selections
* **Dropdown Select** – For predefined options
* **Date/Datetime** – For selecting dates or timestamps
After you have created all the fields you require, click **continue.**
#### Step 3: Review
The final step is to review the schema. If everything looks correct, press **Create schema**.
## What kind of schema should you use?
Choose a module based on **what you want users to do with data in Tableau**. For example use cases, you can click on the following pages
| If you want to... | Use |
| ---------------------------------------------------------------------------------------------------------------------------------------------------------------- | ------------------------------------ |
| [Add targets, forecasts, scenarios, or other new records](/trulyp/writebackextreme/schemas/what-type-of-schema/add-targets-goals-or-new-records.md) | **Add Data** |
| [Correct or update existing data](/trulyp/writebackextreme/schemas/what-type-of-schema/correct-or-update-existing-data.md) | **Data Correction** |
| [Maintain helper tables, mappings, lists, or supporting data](/trulyp/writebackextreme/schemas/what-type-of-schema/maintain-helper-tables-or-supporting-data.md) | **Data Helper** |
| [Discuss and annotate data](/trulyp/writebackextreme/schemas/what-type-of-schema/discuss-and-annotate-data.md) | **Collaboration** *(Add Data addon)* |
***
### Create schema based on an existing schema
For a data correction schema it is possible to connect to a database table that already exists in your database. The only requirement is that the table has ONE primary key. (Compound keys are not allowed)
To create a schema from an existing table follow these steps:
1. Create new schema
2. Select `Data correction` module
3. Select `Use existing schema`
4. Select the connection which connects to the database where the table is located
5. A list of all tables will be presented, Select your table. (when the list is to large, just use Ctrl+F to actiate the search function in your browser)
6. The new schema wizard will show with all detected columns matched to the field types that WriteBackExtreme uses.
{% hint style="warning" %}
For best compatibility make sure the ID column of the table is a UUID column for example CHAR(36). An example statement for a table could look like:
create or replace MY\_TABLE(\
ID CHAR(36) NOT NULL,\
COLUMN\_1 VARCHAR(16777216),\
constraint MY\_TABLE\_ID primary key (ID)\
);
{% endhint %}
{% hint style="info" %}

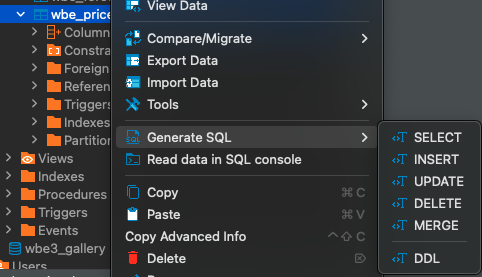

When the management console shows an error about a missing primary key, the best way to verify this is by getting the `DDL statement` or `Create table` statement from a third party database management tool like DBeaver. This is the easiest way since every database has it's own way of retrieving the primary key information.
{% endhint %}
{% hint style="info" %}
This `Create schema from existing schema` feature can be disabled by an administrator via the advanced settings page.
{% endhint %}
{% hint style="info" %}
When there is an error in retrieving the tables or the details of a table, the error log will probably show the true cause. Go to Info & license -> Click on system logs and click the laravel log of today to see the details of the error.
{% endhint %}
---
