Multiple Layouts

SuperTable enables users to create and store multiple custom layouts for quick access. For instance, a user might arrange specific columns in a preferred order in one layout. This functionality allows users to use pre existing layouts without starting from scratch and to easily swap between layouts. Here’s a guide on how to create and store custom layouts:

Configuration

Firstly you will need to create two parameters of type string in your worksheet. One for storing the view and one for the layout change. Leave the value empty.

Step 1

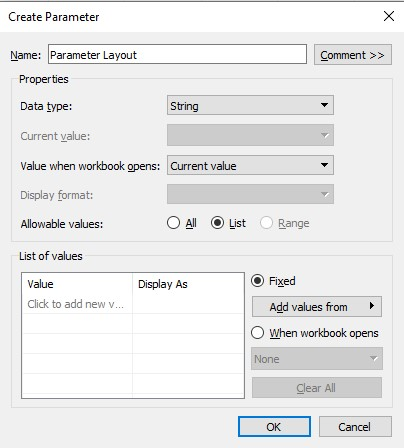

Create a parameter

Firstly you will need to create two parameters of type string in your worksheet. One for storing the view and one for the layout change. Leave the value empty.

Step 2

Configure parameter in supertables

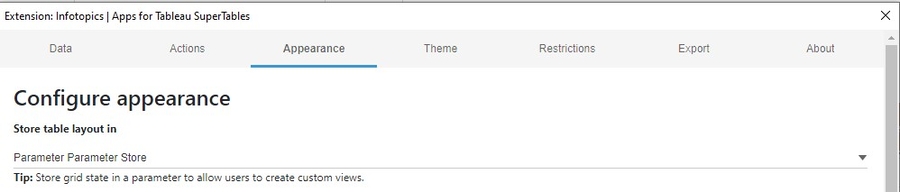

Open the configuration screen of SuperTables and head to the appearance tab. Choose the parameter you created to store your layout in.

Step 3

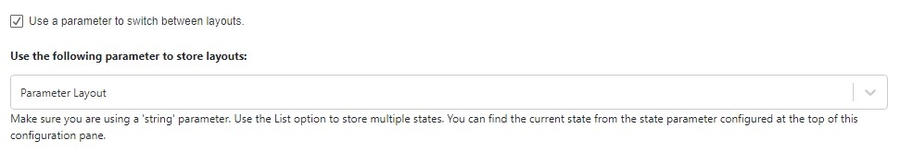

Configure second parameter you created

Step 4

Setup your dashboard

Place both Parameter filers on your dashboard. All changes made in your SuperTables will be saved in your stored parameter. When you’ve got your SuperTable view exactly how you want it, copy the text shown in your stored parameter.

Step 5

Layout parameters

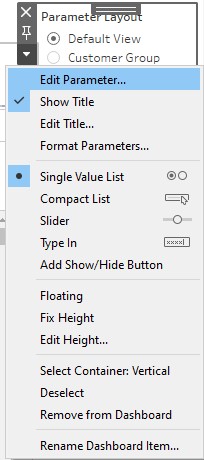

Edit the layout parameter by clicking on the dropdown on the parameter. This is where we will be creating our custom layouts.

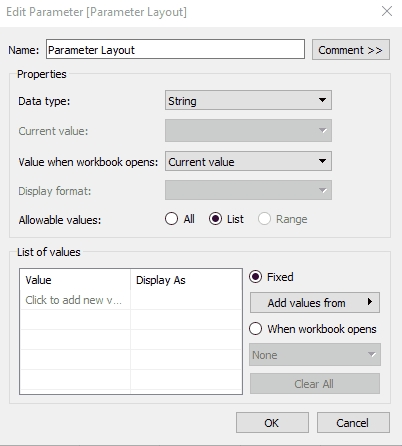

Paste your layout as a value in the list and name your custom view.

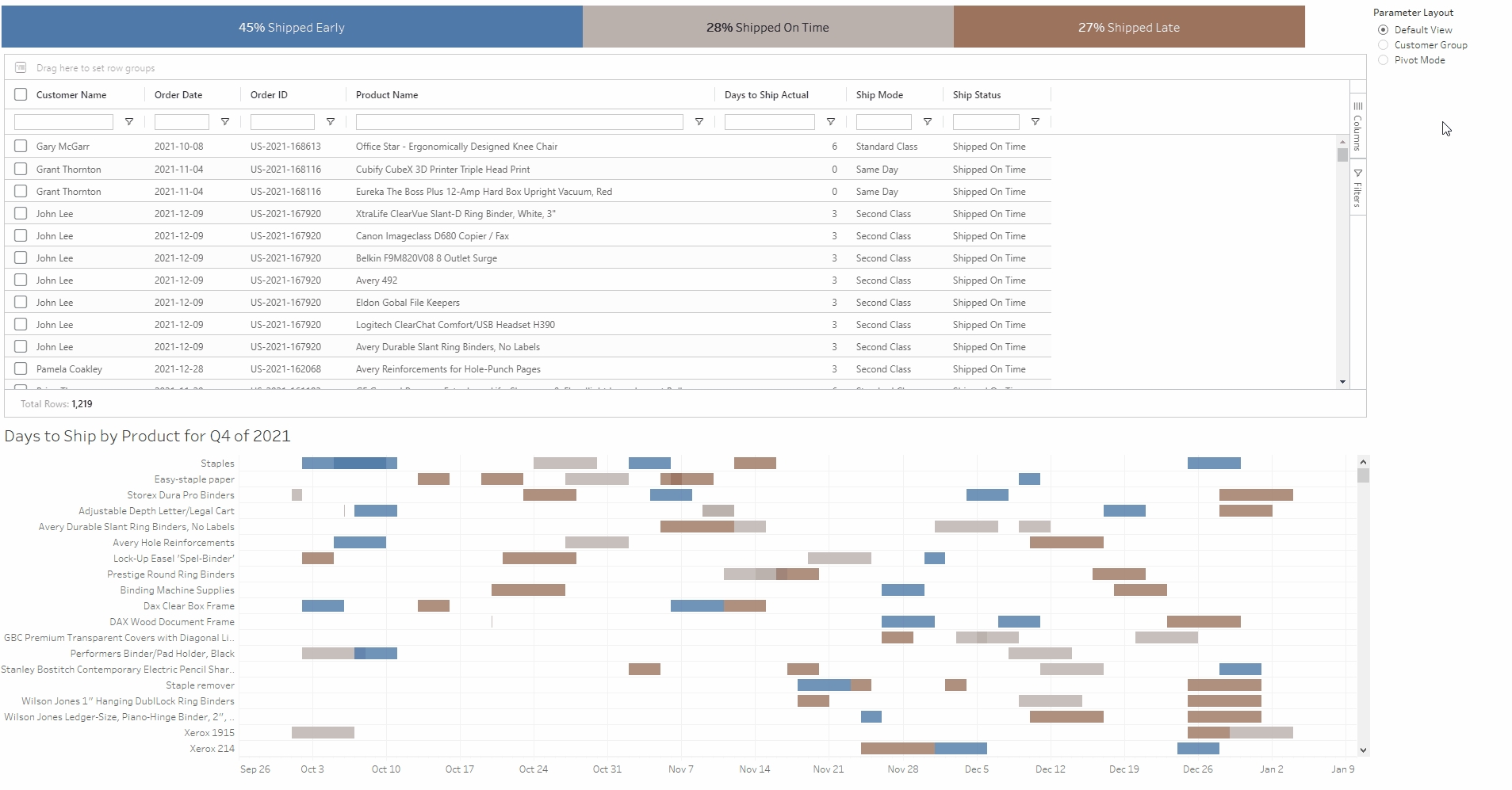

Repeat this process for each new custom view you wish to have on your dashboard. Once you have all the custom views you want, remove the stored layout from your dashboard. You can now click on each view and see an instant change in your SuperTable!
