# Dashboard actions

Dashboard actions are available within your Venn Diagram! Filter down on a dimension by clicking a node and see that interact instantly with your dashboard. It’s also possible to filter back from your Tableau dashboard.

In the example dashboard, I configured the Dashboard action as shown below:

<figure><img src="/files/m0JVbkmOFqgbFLqoYMND" alt=""><figcaption></figcaption></figure>

This will trigger selection of a sphere or overlapping segment of the VENN diagram and act as a filter on the Target sheet (the Bar Chart with all customers).

Let’s say there is a dataset of customers who bought a car, a motorbike or a bicycle, and some of them bought more than 1 vehicle. When the checkbox is selected, clicking the outside part of the “car” dataset will select only the customers that bought a car, and no other vehicles. When the checkbox is not selected, clicking the “car” dataset will select all customers who bought a car, even those who also bought a motorbike and/or bicycle.

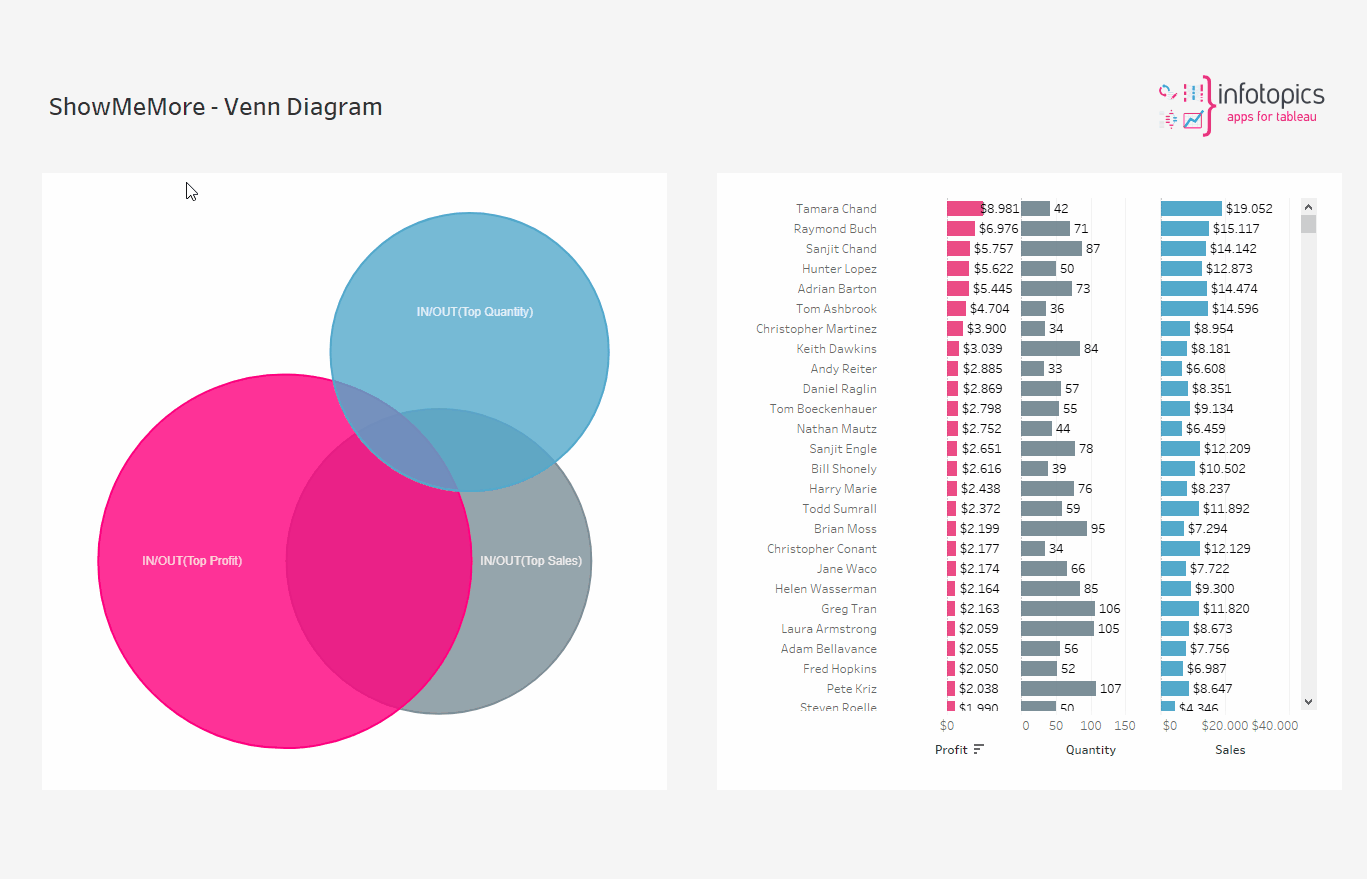

In the example below you can see that selecting a sphere or an overlapping segment of spheres will filter my customers to the ones that are part of the sets involved in my selection.

<figure><img src="https://appsfortableau.infotopics.com/wp-content/uploads/2021/08/Dashboard-Actions-1.gif" alt=""><figcaption></figcaption></figure>


---
